Ceramic igniters replace metal igniters 110V 110W
Ceramic Igniter Rod Compatible with Wood Pellet Smoker, Grill
Ceramic igniter production process
A Heat element:white alumina ceramic,and the content of alumina is no less than 95%,it was produced by implementing unique metallization and ceramic lamination processes under 1650℃, print resistors on alumina sheet,be laminated and sintered for one piece.
Specification
| Product Name | Ceramic igniters replace metal igniters 110V 110W |
| Heating element | outside diameter - Φ6mm length - 82mm |
| Voltage | 110V/AC |
| Power | 110W |
| Cable | 800mm |
| Lead | ф 0. 5mm of Nickel wire |
| Withstand voltage test | place the heating element in the water, add the AC4500V voltage, measure the leakage current, and the leakage current ≤1mA is qualified. |
| Insulation test | put the bare tube of the heating element into the water, add DC500V voltage, measure the resistance of the heating tube, and the measured value ≥ 50MΩ |
| Application | Wood Pellet Grill and Smoker |

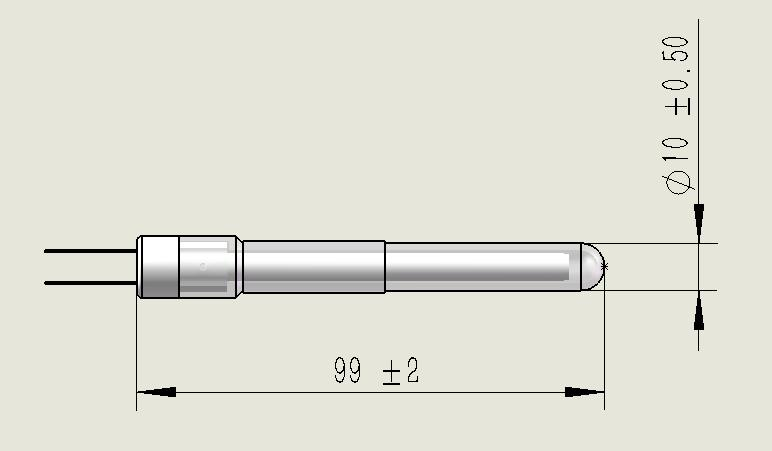

Product dimensions
This ceramic igniter is a new modification of Kairui Hongxing, with a ceramic sleeve on the outside of the heating element so that it can come into contact with biomass pellets, making it an excellent alternative to metal igniters.
Advantage
* New ceramic igniter lasts five times longer than conventional contact igniters
* Heats up twice as fast and creates double the heat
* Lights with induction heat which solves problems with failed ignition from ash buildup
* Ceramic igniter carries a three-year warranty
* High-Temperature (950~1000°C)
* Rapid heat increase (950~1000°C) in less than 60s
* High watt density, good thermal efficiency (save energy compare to metal cartridge heating element)
* Long Durability
* Do not over-heat/ Stable temperature
* Superior dielectric strength and electrical insulation
* Don't oxidized
* Small Size/High Output (compact compare to traditional heating element)
* Excellent Mechanical Properties
Kairui Company specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ceramic ignition products to many industry sectors.
Product Tags:
|
|

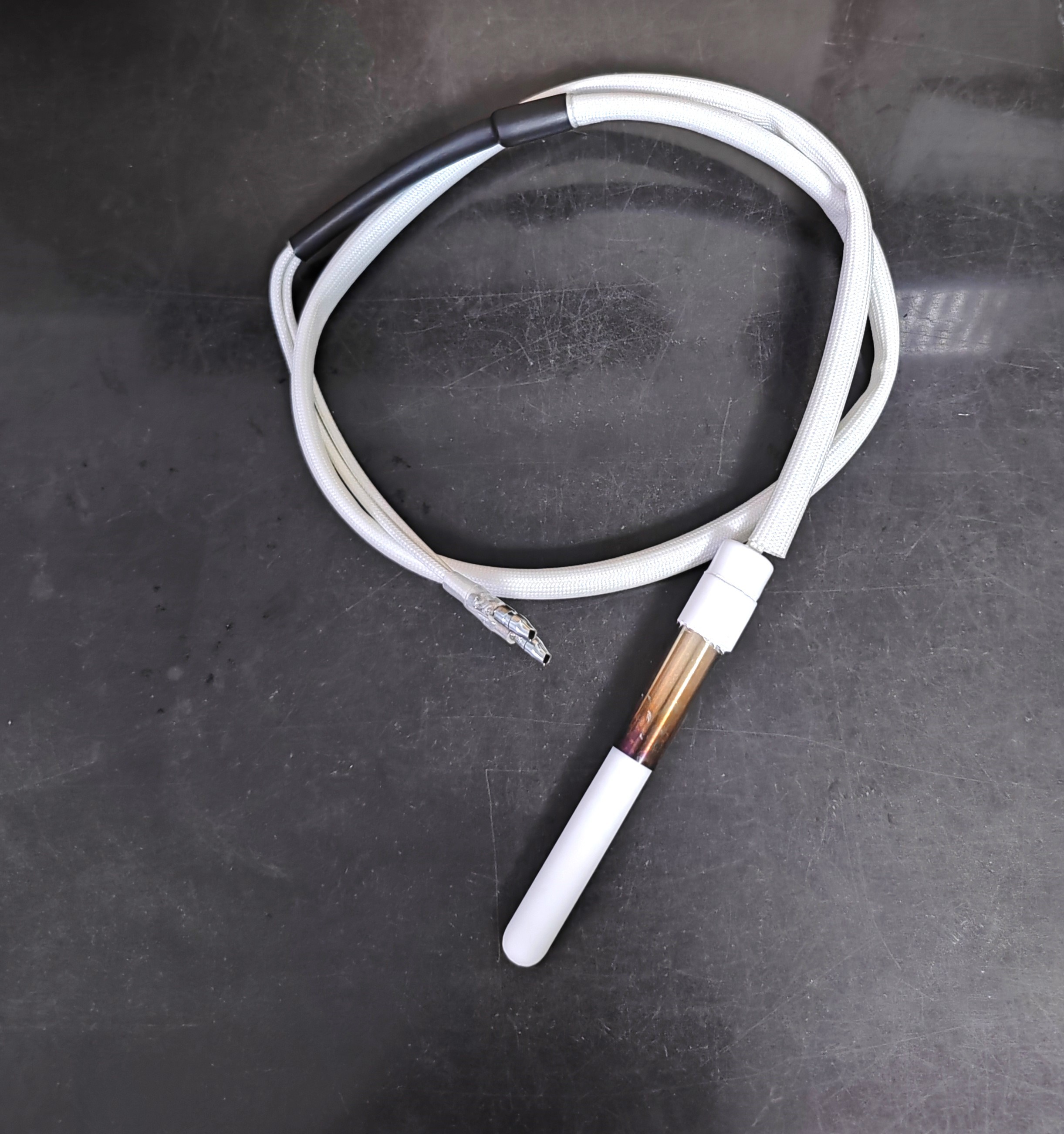

Ceramic Igniters Replace Metal Igniters 110V 110W Images
|
