SBI Igniter Rod 120V 300 Watt with Aluminum 95% Heating Element and 2 Pin Molex Style Connector

Name: SBI Igniter Rod 120V 300 Watt with Aluminum 95 Heating Element and 2 Pin Molex Style Connector
Brand: KRHX
Price: 1 USD

SBI Igniter Rod 120V 300 Watt with Aluminum 95% Heating Element and 2 Pin Molex Style Connector Manufactures

Brand Name : KRHX

Model Number : KR-TQ

Certification : CE / ROHS / ETL

Place of Origin : China

MOQ : 10 Pieces

Price : /

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pieces per week

Delivery Time : Usually ships in 1 to 2 business days

Packaging Details : Packing: Each igniterr to be packed in a box, with 100 boxes to a carton.

Max Working Temperature : 980℃

Diameter : Ø9.7mm

Key Selling Points : Long Service Life

Application : Osburn, Drolet, PSG, Flame, and Enerzone pellet stoves

Cable : heat shrinkable tube

Hetaing Element : Aluminum 95%

Wire : MICA Insulated leads

Connectors : 2 Pin Molex style connector.

Flange : collar brass flange

Product : SBI Igniter Rod 120V 300 Watt

Contact Now

SBI Igniter Rod 120V 300 Watt

Replacement (Non-Threaded) igniter for Osburn, Drolet, PSG, Flame, and Enerzone pellet stoves.
This igniter features Advanced Ceramic, Fast Ignition, and Higher Operating Temperature.
Fits the following Osburn pellet stove models:
Hybrid-35MF Insert (serial # 300 and higher)
Hybrid-45MF (serial # 1620 and higher)

Fits the Following models of Drolet Stoves
Eco 35 (Make sure your current igniter is a set screw style and NOT threaded)
Eco 45 Serial number 3352 & up.

Replacement For Part Numbers
44132
SE44132
SE30789

Replacement (Non-Threaded) igniter for Osburn, Drolet, PSG, Flame, and Enerzone pellet stoves.

This igniter features Advanced Ceramic, Fast Ignition, and Higher Operating Temperature.

Specification

Size

Diameter: 3/8"

Ignitor Length: 5"

Power

300 Watts.

Maximum temperature

970 ° C

Application

Pellet stoves

Tested

for over 10,000 ON / OFF cycles, with fast ignition times.

Flange

brass unthreaded collar

Certification

CE, ROHS

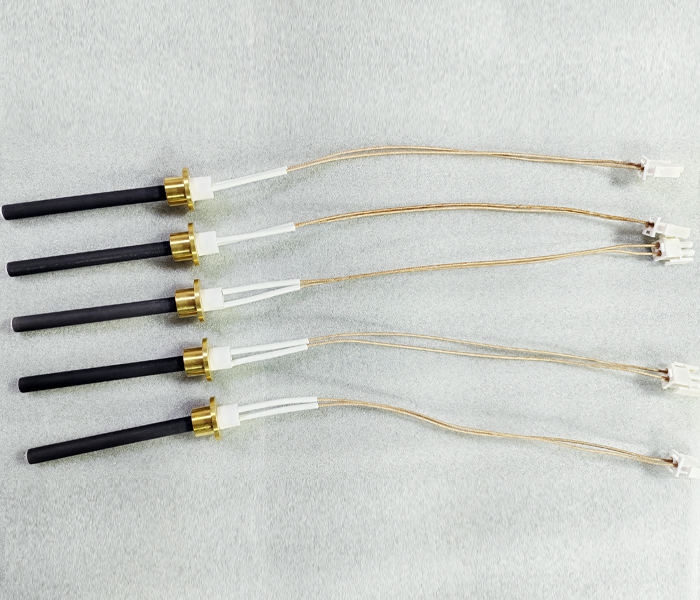

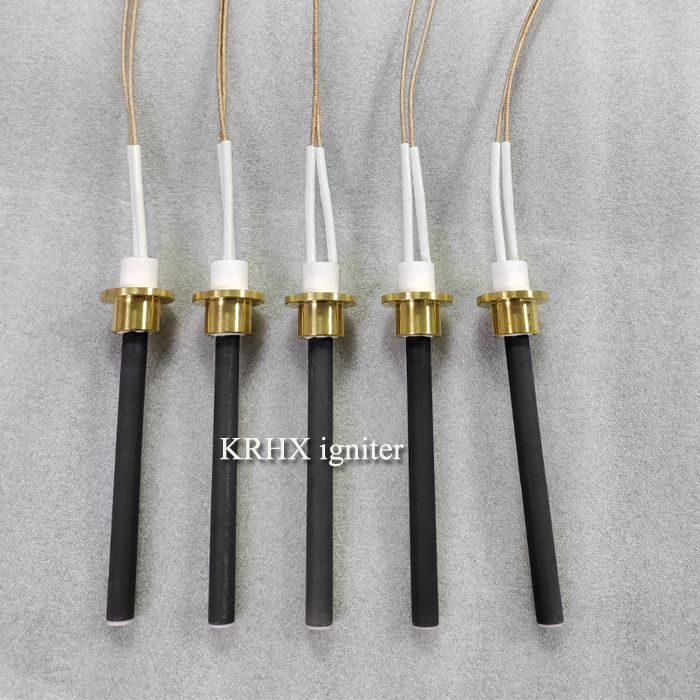

Product show

Connectors at the end of the wires - fast -on insulated quick connectors

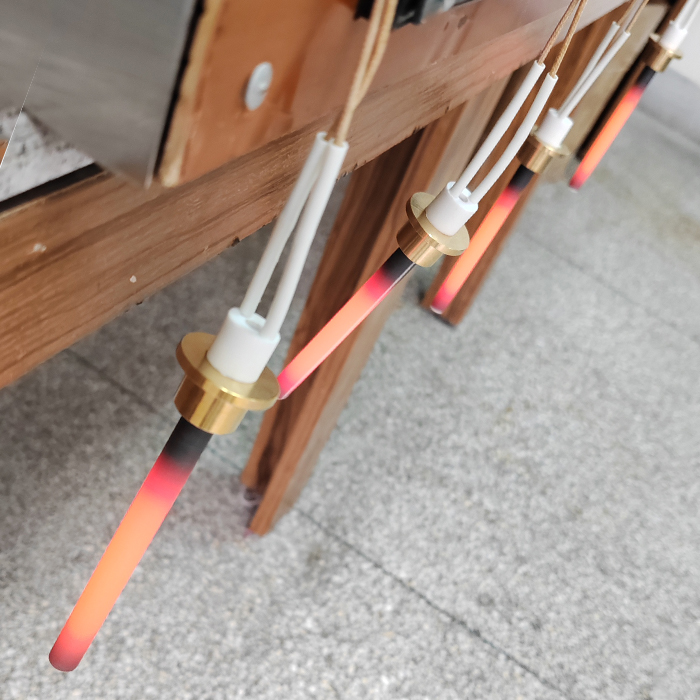

Dry burn test

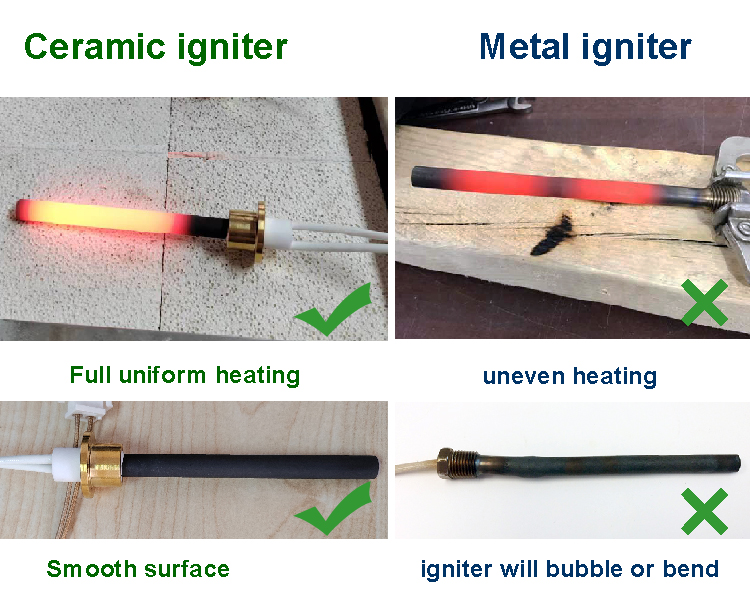

Ceramic igniters advantage
