Original ceramic heater-lighter for kindling stoves and pellet boilers with threaded 3/8*
Original ceramic heater-lighter for kindling stoves and pellet boilers with threaded 3/8*
Original heater-lighter factory made from Shaanxi Kairuihongxing Electornic Co.,Ltd.
Ceramic heater – a lighter for pellet stoves, designed for burning pellets and wood chips for boilers and burners on the stove.
Tested on more than 10,000 on/off cycles, with fast ignition times.
Perforated version.
Specification
| Product Name | Ceramic heater with thread 3/8* 300W lighter for kindling of stoves and pellet boilers |
| Size | Diameter: 11.5 mm. Overall length: 106 mm. Up to the length of the screw: 80 mm. |
| Voltage | 230V |
| Power | 300-350W |
| Temperature up to | 1000 ° C |
| Cable | white fiberglass insulated 0.75 mm² cable |
| Lead | In a ф 0. 5mm of Nickel wire(The length depends on the customer) |
| Application | Pellet stove/boiler |
Advantage
* Long life, Free replacement within 2 years
* No leakage when working continuossly.
* Timing of ignition with 90 seconds.
* On-off 10,000 cycle without fault.
* OEM order are available for all kinds of igniter.

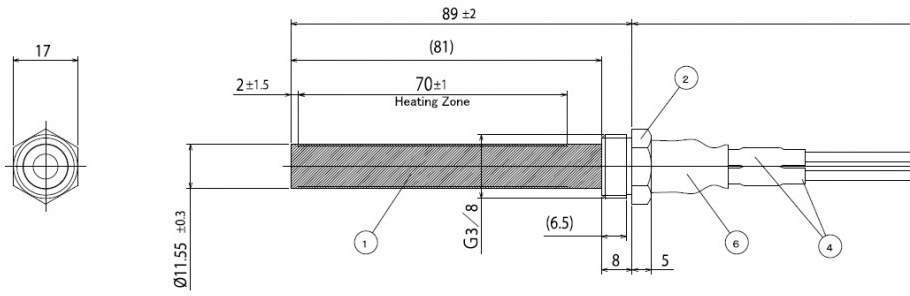

Dimension
Suitable for many types of models of different stoves and pellet boilers:
– Centropelet some models
– Thermoflux some models-new
– Bosch- newer burner models
– DEVILLE ref. P0052972 mode. Ulys
– ECOTECK ref. 55537
– LA NORDICA EXTRAFLAME boilers (002271140 ex 002271070 – KH74058): HP15 EVO, HP22 EVO, HP30 EVO, Amika, Debby, Debby CX, Comfort Idro L80, Diadema Idro, Diadema ACS Idro, Isidora idro H16, Isidora idro H20, Liliana Idro, Melinda Idro 2.0, Melinda Idro Steel 2.0,
– RAVELLI ref. 55537 mod. Natural 11
– Compatible with Dal Zotto stoves / boilers: Inserto Idro 800, Jole Idro 2.0, Malika Idro

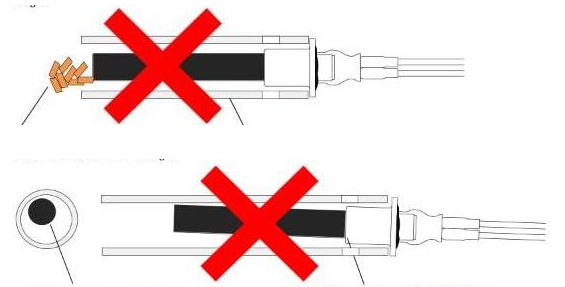

Be careful during installation; ensure that the ceramic igniter does not come into contact with biomass pellets and does not touch the metal protective tube.
